KYH90 Series Slip Ring
Description:
This units can be used in any electromechanical system that requires unrestrained,continuous rotation while transferring power or data from a stationary to a rotating structure.It's also called a rotary electrical interface,commutator,collector,swivel or an electrical rotary joint.It can improve electromechanical capability,simplify system design,eliminate possible damage while rotation.It¡¯s the key apparatus of various precision rotary worktable, electric test instrument,manufacture and process control instrument.
The KYH90 series provide an economical, readily available solution when a compact through-bore configuration is required. This unit provides a 90 mm through-bore for routing hydraulic or pneumatic lines and a compact 190 mm outside diameter for minimal space applications. This series are available in 6, 12, 18, 24, 30, 36, 42 and 48 ring in standard. Similar in design to our very popular KYH90 series, this design features long life, fiber brush contact technology for ultimate performance in many challenging applications. Fiber brushes do not require lubrication and produce virtually no wear debris, for maintenance free, life time operation.
Features:
¡ö 6, 12, 18, 24, 30, 36, 42 and 48 circuits models
¡ö Precious metal contacts
¡ö 2, 5 ,10 ,15, 20 amps rings
¡ö Precision ball bearings for long life
¡ö Speeds up to 500 rpm continuous
¡ö Compact size
¡ö Sealed units available
¡ö Flying leads
¡ö Fully compatible with both analog and TTL control level signals
¡ö Rugged black anodized aluminum construction
Specifications:
Number of Circuits 2-48 (or more)
Rotary Speed 0-300 rpm
Voltage Rate 380 VAC/DC
Current Rate 2, 5, 10, 15, 20 amps per circuit
Temperature -20¡æ to +80¡æ
Contact Material Precious metal
Lead Size AWG22(5A), AWG17(10A), AWG14(15A), AWG12(20A)
Lead Length 300 mm minimum
Torque Force Approx. 50.0 cmg per circuit
Through Bore ¦µ90 mm
Noise ¡Ü10m¦¸
¡¡ ¡¡ ¡¡ ¡¡ ¡¡ ¡¡ ¡¡ ¡¡ ¡¡
¡¡ ¡¡ ¡¡ ¡¡ ¡¡ ¡¡ ¡¡ ¡¡ ¡¡

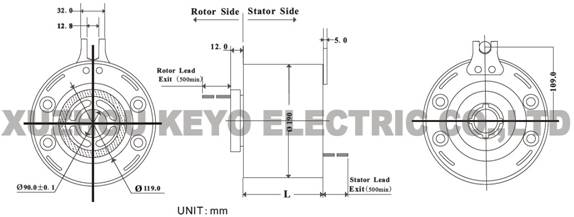

Length =L
Current Rate 6 Circuits 12 Circuits 18 Circuits 24 Circuits
5A 61.5mm 76.5mm 91.5mm 106.5mm
10-20A 76.5mm 106.5mm 136.5mm 166.5mm
¡¡
Current Rate 30 Circuits 36 Circuits 42 Circuits 48 Circuits
5A 121.5mm 136.5mm 151.5mm 166.5mm
10-20A 196.5mm 226.5mm 256.5mm 286.5mm
