| Description: |
| This units can be used in any electromechanical system that requires unrestrained,continuous rotation while |
| power or
data from a stationary to a rotating structure.It's also called a rotary electrical |
| interface,commutator,collector,swivel or an electrical rotary joint.It can improve electromechanical capability,simplify system |
| design,eliminate possible damage while rotation.It¡¯s the key apparatus of various precision rotary worktable, electric test |
| instrument,manufacture and process control instrument. |
| |
| The KYH38 series provide an economical, readily available solution when a compact through-bore configuration is |

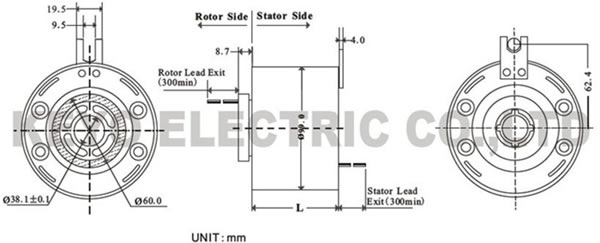

| required. This unit provides a 38.1 mm through-bore for routing hydraulic or pneumatic lines and a compact 99 mm outside |
| diameter for minimal space applications. This series are available in 6, 12, 18 and 24 ring configurations in 4 housing lengths. |
| Similar in design to our very popular KYH38 series, this design features long life, fiber brush contact technology for ultimate |
| performance in many challenging applications. Fiber brushes do not require lubrication and produce virtually no wear debris, |
| for maintenance free, life time operation. |
| |
| Features: |
| ¡ö 6, 12, 18 and 24 circuits models |
| ¡ö Precious metal contacts |
| ¡ö 2, 5 ,10 ,15 amps rings |
| ¡ö Precision ball bearings for long life |
| ¡ö Speeds up to 500 rpm continuous |
| ¡ö Compact size |
| ¡ö Sealed units available |
| ¡ö Flying leads |
| ¡ö Fully compatible with both analog and TTL control level signals |
| ¡ö Rugged black anodized aluminum construction |
| ¡¡ |
| Specifications: |
| Number of Circuits |
2-24 (or more) |
| Rotary Speed |
0-300 rpm |
| Voltage Rate |
380 VAC/DC |
| Current Rate |
2, 5, 10, 15 amps per circuit |
| Temperature |
-20¡æ to +80¡æ |
| Contact Material |
Precious metal |
| Lead Size |
AWG22(5A),AWG17(10A),AWG14(15A) UL Teflon® |
| Lead Lengths |
300 mm minimum |
| Torque Force |
Approx. 50.0 cmg per circuit |
| Through Bore |
¦µ38.1 mm |
| Noise |
¡Ü10m¦¸ |
|
