KYH12 Series Slip Ring
This units can be used in any electromechanical system that requires unrestrained,continuous rotation while
power or data  from a stationary to a rotating structure.It's also called a rotary electrical
interface,commutator,collector,swivel or an electrical rotary joint.It can improve electromechanical capability,simplify system
design,eliminate possible damage while rotation.It¡¯s the key apparatus of various precision rotary worktable, electric test
instrument,manufacture and process control instrument.
The KYH12 series provide an economical, readily available solution when a compact through-bore configuration is
required. This unit provides a 12.7 mm through-bore for routing hydraulic or pneumatic lines and a compact 56 mm outside
diameter for minimal space applications. This series are available in 6, 12, 18 and 24 ring configurations in 4 housing lengths.
Similar in design to our very popular KYH12 series, this design features long life, fiber brush contact technology for ultimate
performance in many challenging applications. Fiber brushes do not require lubrication and produce virtually no wear debris,
for maintenance free, life time operation.
¡ö 6, 12, 18 and 24 circuits models
¡ö Precious metal contacts
¡ö 2, 5 ,10 ,15 amps rings
¡ö Precision ball bearings for long life
¡ö Speeds up to 500 rpm continuous
¡ö Compact size
¡ö Sealed units available
¡ö Flying leads
¡ö Fully compatible with both analog and TTL control level signals
¡ö Rugged black anodized aluminum construction
Number of Circuits 2-24 (or more)
Rotary Speed 0-300 rpm
Voltage Rate 380 VAC/DC
Current Rate 2, 5, 10, 15 amps per circuit
Temperature -40¡æ to +80¡æ
Contact Material Precious metal
Lead Size AWG22(5A),AWG17(10A) UL Teflon©
Lead Lengths 300 mm minimum
Torque Force Approx. 50.0 cmg per circuit
Through Bore ¦µ12.7 mm
Noise ¡Ü10m¦¸

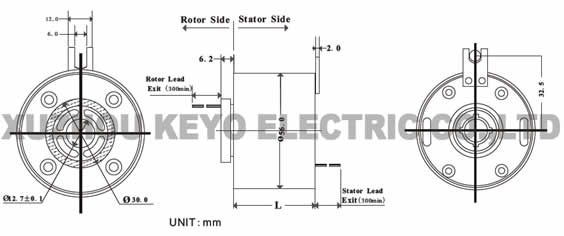

Length =L
Current Rate 6 Circuits 12 Circuits 18 Circuits 24 Circuits
5A 35.0mm 48.8mm 62.6mm 76.4mm
10A 38.0mm 54.8mm 71.6mm 88.4mm
