KYH80 Series Slip Ring
| Description: |
| This units can be used in any electromechanical system that requires unrestrained,continuous rotation while transferring power or data from a stationary to a rotating structure.It's also called a rotary electrical interface,commutator,collector,swivel or an electrical rotary joint.It can improve electromechanical capability,simplify system design,eliminate possible damage while rotation.It¡¯s the key apparatus of various precision rotary worktable, electric test instrument,manufacture and process control instrument. |
| The KYH80 series provide an economical, readily available solution when a compact through-bore configuration is required. This unit provides a 80 mm through-bore for routing hydraulic or pneumatic lines and a compact 180 mm outside diameter for minimal space applications. This series are available in 6, 12, 18, 24, 30, 36, 42 and 48 ring in standard. Similar in design to our very popular KYH80 series, this design features long life, fiber brush contact technology for ultimate performance in many challenging applications. Fiber brushes do not require lubrication and produce virtually no wear debris, for maintenance free, life time operation. |
| Features: |
| ¡ö 6, 12, 18, 24, 30, 36, 42 and 48 circuits models |
| ¡ö Precious metal contacts |
| ¡ö 2, 5 ,10 ,15, 20 amps rings |
| ¡ö Precision ball bearings for long life |
| ¡ö Speeds up to 500 rpm continuous |
| ¡ö Compact size |
| ¡ö Sealed units available |
| ¡ö Flying leads |
| ¡ö Fully compatible with both analog and TTL control level signals |
| ¡ö Rugged black anodized aluminum construction |
| Specifications: |
| Number of Circuits |
2-48 (or more) |
| Rotary Speed |
0-300 rpm |
| Voltage Rate |
380 VAC/DC |
| Current Rate |
2, 5, 10, 15, 20 amps per circuit |
| Temperature |
-20¡æ to +80¡æ |
| Contact Material |
Precious metal |
| Lead Size |
AWG22(5A), AWG17(10A), AWG14(15A), AWG12(20A) |
| Lead Length |
300 mm minimum |
| Torque Force |
Approx. 50.0 cmg per circuit |
| Through Bore |
¦µ80 mm |
| Noise |
¡Ü10m¦¸ |
| ¡¡ |
¡¡ |
¡¡ |
¡¡ |
¡¡ |
¡¡ |
¡¡ |
¡¡ |
¡¡ |
 |
 |
| ¡¡ |
¡¡ |
¡¡ |
¡¡ |
¡¡ |
¡¡ |
¡¡ |
¡¡ |
¡¡ |

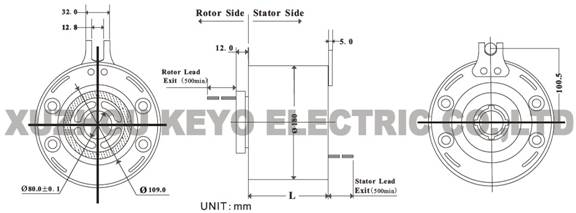

| Length =L |
| Current Rate |
6 Circuits |
12 Circuits |
18 Circuits |
24 Circuits |
| 5A |
61.5mm |
76.5mm |
91.5mm |
106.5mm |
| 10-20A |
76.5mm |
106.5mm |
136.5mm |
166.5mm |
| ¡¡ |
| Current Rate |
30 Circuits |
36 Circuits |
42 Circuits |
48 Circuits |
| 5A |
121.5mm |
136.5mm |
151.5mm |
166.5mm |
| 10-20A |
196.5mm |
226.5mm |
256.5mm |
286.5mm |
|
|
|
