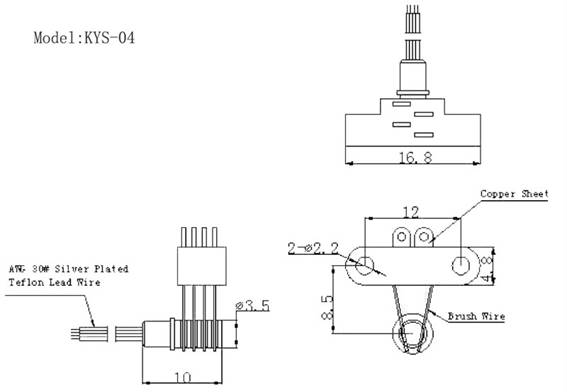

KYS-04
| |
| Specification |
| Operating Speed |
0-100
rpm |
| Number of Circuits |
4 |
| Voltage |
240
VAC/DC |
| Current Rating |
1
amps /per circuit |
| Temperature Range |
-20¡æ to +80¡æ |
| Contact Material |
Gold
to Gold |
| Lead Size |
AWG30
silver plated copper ULR, TeflonR |
| Lead Lengths |
200
mm minimum |
| Dielectric Strength |
500
VAC @50Hz, between each circuit and all other circuits |
| Insulation Resistance |
1000
Megohms @ 500 VDC |
| Noise |
70m¦¸
max.. d @ 6 VDC50 mA ,(operating at 5 rpm) |
| ¡¡ |
| Capsule Length =L |
| # of Circuits |
L
(mm) |
| 4 |
16.8 |
| ¡¡ |
| ¡öThe
operational life of the unit depends upon temperature, rotation speed and
environment |
| ¡¡ |
| Lead Wire Color
Codes |
| Ring# |
Color Code |
| #1 |
BLK |
| #2 |
BRN |
| #3 |
RED |
| #4 |
ORN |
|
|
|
