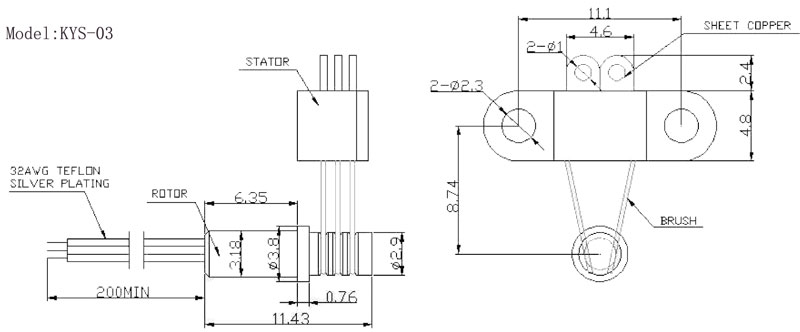

KYS-03


Specifications
Operating Speed 0-100 rpm
Number of Circuits 3
Voltage 240 VAC/DC
Current Rating 1 amp /per circuit
Temperature Range -20¡æ to +80¡æ
Contact Material Gold to Gold
Lead Size AWG32 silver plated copper ULR, TeflonR
Lead Lengths 200 mm minimum
Dielectric Strength 500 VAC @50Hz, between each circuit and all other circuits
Insulation Resistance 1000 Megohms @ 500 VDC
Noise 70m¦¸ max.. d @ 6 VDC50 mA ,(operating at 5 rpm)
¡¡
Capsule Length =L
# of Circuits L (mm)
3 11.43
¡¡
¡öThe operational life of the unit depends upon temperature, rotation speed and environment
¡¡
Lead Wire Color Codes
Ring# Color Code
#1 BRN
#2 RED
#3 ORN
