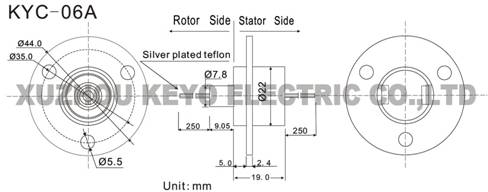

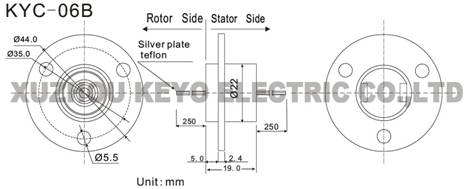

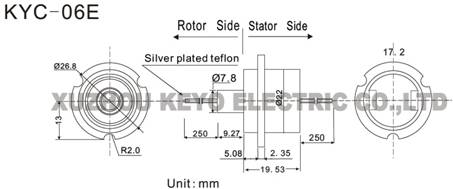

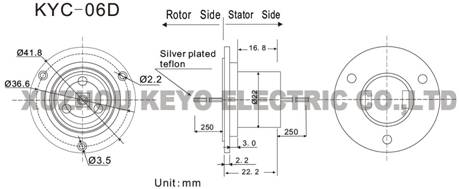

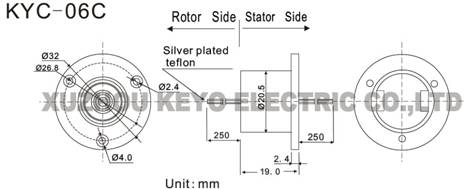

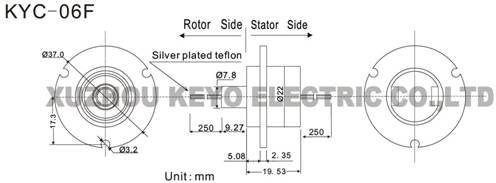

KYC06 Series Slip Ring
Description:
This units can be used in any electromechanical system that requires unrestrained,continuous rotation while transferring power or data from a stationary to a rotating structure.It's also called a rotary electrical interface,commutator,collector,swivel or an electrical rotary joint.It can improve electromechanical capability,simplify system design,eliminate possible damage while rotation.It¨s the key apparatus of various precision rotary worktable, electric test instrument,manufacture and process control instrument.
Features:
* 2 amps ,240 VDC / 240 VAC per circuit
* Precision ball bearings meet or exceed life requirements for most commercial application
* 6 circuits models
* Gold-on-gold contacts
* 200mm standard lead lengths
* Compatible with data bus protocols
* Speeds up to 300 rpm continuous
* Sealed units are also available
* Flexible, color-coded, silver-plated, Teflon insulated lead wires
* Transfers analog and digital signals
* Also available with 5 and 10 amps power rings combined with 2 amps rings.
Specifications:
Operating Speed 0-300 rpm
Number of Circuits 6
Voltage 240 V AC/DC
Current Rating 2 amps /per circuit
Temperature Range -20≧ to +80≧
Contact Material Gold to Gold
Lead Size AWG28 silver plated copper? UL Teflon
Lead Lengths 250 mm minimum
Dielectric Strength 500 VAC @50Hz, between each ircuit and all other circuits
Insulation Resistance 1000 megohms @ 500 VDC
Electric Noise +10mΩ
* The operational life of the unit depends upon temperature, rotation speed and environment
