| Description: |
| This units can be used in any electromechanical system that requires unrestrained,continuous rotation while transferring power or data from a stationary to a rotating structure.It's also called a rotary electrical interface,commutator,collector,swivel or an electrical rotary joint.It can improve electromechanical capability,simplify system design,eliminate possible damage while rotation.It¡¯s the key apparatus of various precision rotary worktable, electric test instrument,manufacture and process control instrument. |
| Features: |
| ¡ö 3 circuits or 9 circuits combinations models |
| ¡ö 2 , 5 , 10 amps per circuit |
| ¡ö Speeds up to 300 rpm continuous |
| ¡ö Gold-on-gold contacts |
| ¡ö Color-coded, silver-plated, Teflon insulated lead wires |
| ¡ö Longer lead wire available |
| ¡ö Compatible with data bus protocols |
| ¡ö Transfers analog and digital signals |
| ¡ö Sealed units are also available |
| Specifications: |
| Model Number |
KYC03P |
| Operating Speed |
0-300 rpm |
| Number of Circuits |
3 |
| Voltage |
240 VAC/DC |
| Current Rating |
10 A per circuit |
| Temperature Range |
-20¡æ to +80¡æ |
| Contact Material |
Gold to Gold |
| Lead Size |
16AWG(10A) |
| Lead Lengths |
250 mm minimum |
| Dielectric Strength |
500 VAC @50Hz,between each circuit |
| Insulation Resistance |
1000 M¦¸@ 500 VDC |
| Electric Noise |
¡Ü10m¦¸ |
| ¡ö The operational life of the unit depends upon temperature, rotation speed and environment |
| ¡¡ |
¡¡ |
¡¡ |
¡¡ |
¡¡ |
¡¡ |
¡¡ |
¡¡ |
¡¡ |
 |
 |
| ¡¡ |
¡¡ |
¡¡ |
¡¡ |
¡¡ |
¡¡ |
¡¡ |
¡¡ |
¡¡ |

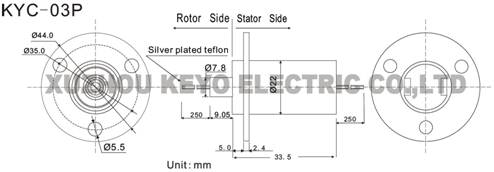

| Capsule Length =L |
| Number of Circuits |
Current Rating |
L |
| 3 |
10 amps |
33.5mm |
