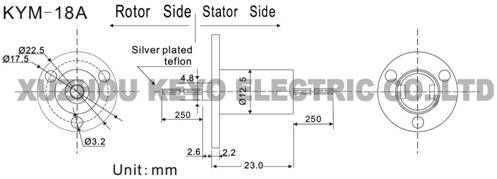

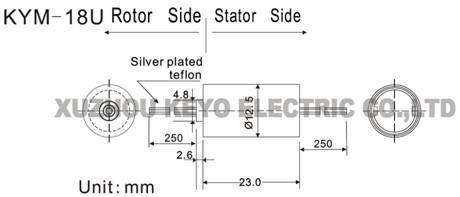

| Description: |
| This units can be used in any electromechanical system that requires unrestrained,continuous rotation while transferring power or data from a stationary to a rotating structure.It's also called a rotary electrical interface,commutator,collector,swivel or an electrical rotary joint.It can improve electromechanical capability,simplify system design,eliminate possible damage while rotation.It¡¯s the key apparatus of various precision rotary worktable, electric test instrument,manufacture and process control instrument. |
| Features: |
| ¡ö 18 circuits models |
| ¡ö 2 amps, 240 VDC / 240VAC per circuit. |
| ¡ö Precision assembly to provide exceptional rotational life |
| ¡ö Speeds up to 300 rpm continuous |
| ¡ö Gold-on-gold contacts |
| ¡ö Mounting flange on housing |
| ¡ö Flexible, color-coded, silver-plated, stranded copper lead wire |
| ¡ö Superior handling of low level control signals |
| Specifications: |
| Operating Speed |
0-300 rpm |
| Number of Circuits |
18 |
| Voltage |
240 V AC/DC |
| Current Rating |
2 amps /per circuit |
| Temperature Range |
-20¡æ to +80¡æ |
| Contact Material |
Gold to Gold |
| Lead Size |
AWG28 silver plated copper UL Teflon |
| Lead Lengths |
250 mm minimum |
| Dielectric Strength |
500 VAC @50Hz, between each ircuit and all other circuits |
| Insulation Resistance |
1000 megohms @ 500 VDC |
| Electric Noise |
¡Ü10m¦¸ |
| ¡ö The operating life of the unit depends upon temperature, rotation speed and environment. |
| ¡¡ |
¡¡ |
¡¡ |
¡¡ |
¡¡ |
¡¡ |
¡¡ |
¡¡ |
¡¡ |
 |
 |
 |
 |
