KYR08

Features & Applications ¡¡ ¡¡ ¡¡ ¡¡ ¡¡ ¡¡
¡ö HD image real-transmission with 360¡ãcontinuous rotation ¡¡ ¡¡
¡ö The slip ring is designed for transfering high speed serial digital and analog signal.
It can be applied to transfering 1080P or 1080I HD-SDI etc., and the transmission rate
could acheive 3Gbps/3GHz or higher. The standard models are 8 or 12 normal signal rings
with 1 RF Coaxial Connector with 50 ohm¡¢75 ohm specific impedance and MMCX¡¢ SMA¡¢MCX¡¢
BNC¡¢SMB joints(Other requested connector could be applied). The coaxial cable can be
choosed from RG174¡¢ RG178¡¢RG179¡¢RG316. And normal signal rings could be used for
transfering power, control signal or other low frequency signals. ¡¡ ¡¡
Specifications:
Number of Circuits 8
Rotary Speed 0-100 rpm
Voltage Rate 0-240 VAC/DC
Current Rate 2 amps per circuit
Temperature -20¡æ to +80¡æ
Contact Material Precious metal
Electrical Wire Wire Size AWG26 UL Teflon®
Wire Length 250 mm
Coaxical Cable Cable Size RG174¡¢RG178¡¢RG316 (50¦¸) ; RG179 (75¦¸)
Cable Length 250 mm
Connector Type MMCX¡¢SMA (50¦¸) ;MCX¡¢BNC¡¢SMB (75¦¸)
Frequency Range 3GHz DC
Transmission Rate ¡Ü3Gbps

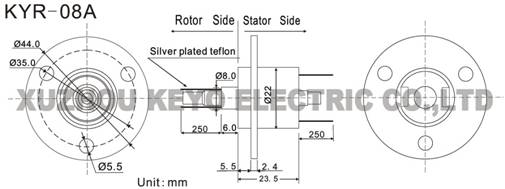

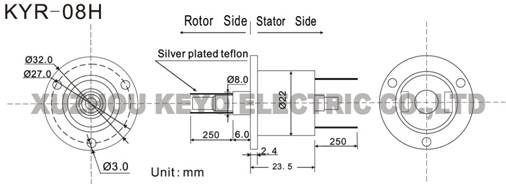

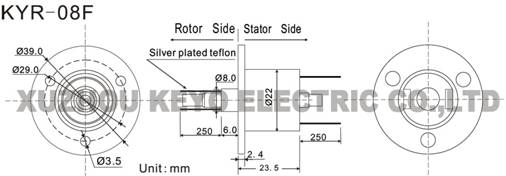

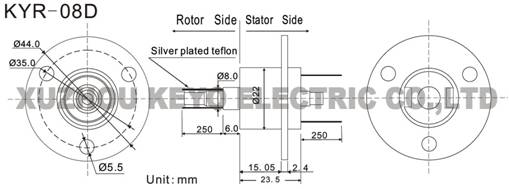

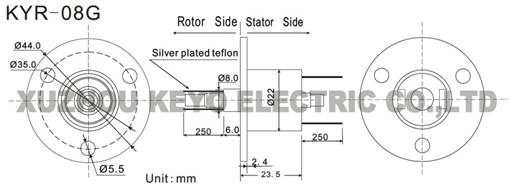

OUTLINE DIMENSIONS:
